NOW FEATURING PLUG AND PLAY CONNECTORS

Now it is no longer necessary to cut your factory harness!

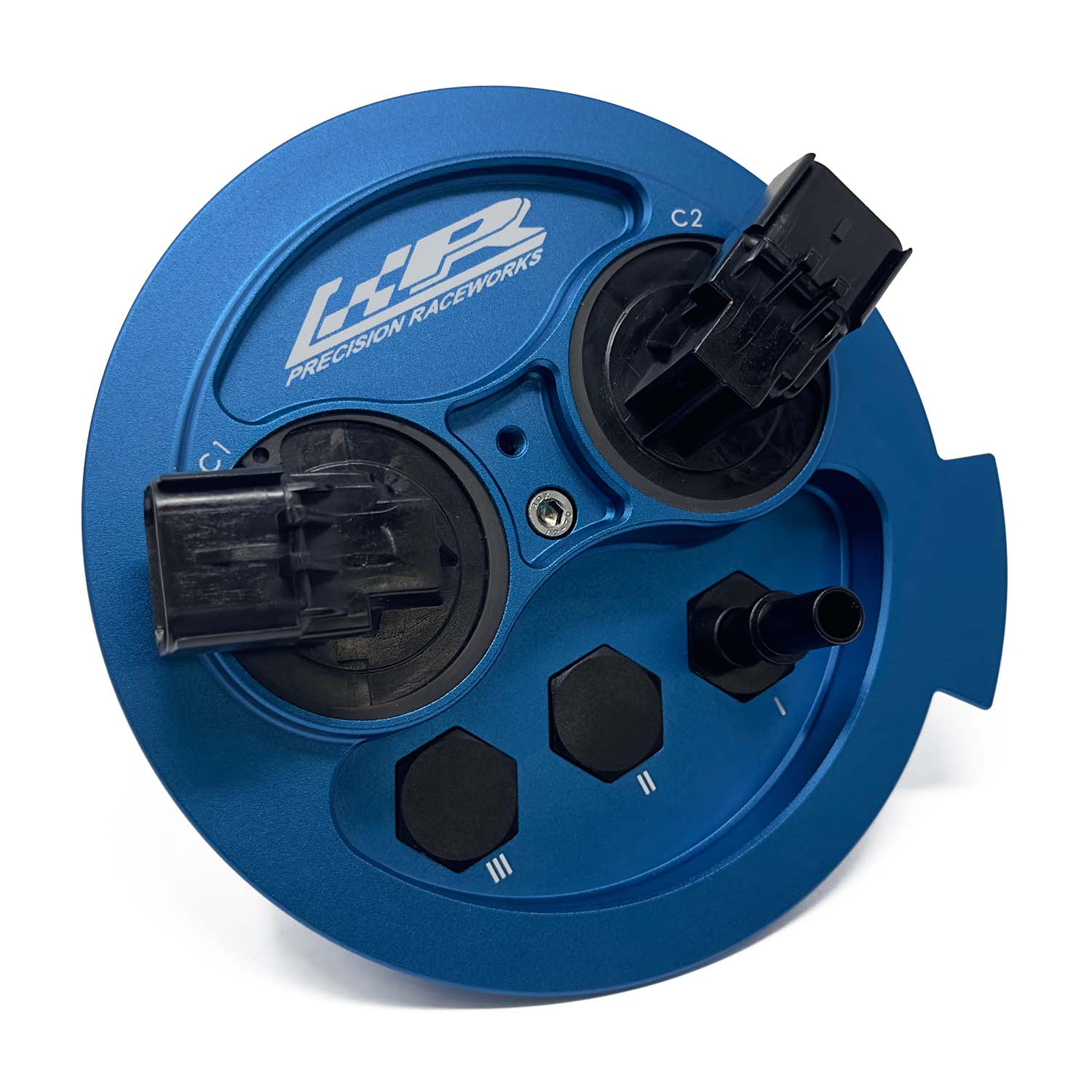

The Precision Raceworks?BMW G-Series and A9x Toyota Supra Billet Tophat?is a great way to get the most out of any fuel system! With up to 3 dedicated high flow modular ports and up to 12 wires, there are countless ways you can configure your pump setup to meet your needs!

Features & Benefits

• Billet Aluminum top hat with 3 high flow fuel ports (optional - 1 included)
• Ability to run dedicated fuel pump(s) for port injection system
• Compatible with adjustable 1:1 scaling fuel pressure regulator
• Fully sealed quick connect style high current electrical connectors
• All billet fuel fittings when using AN8 or Quick Connect Options
• Increased injector flow (when using 1:1 regulator feature vs static)
• Compatible with all stock or upgraded primary fuel pumps*
• Modular design allows for AN8 or quick connect connection styles
• All components compatible with Gasoline, Methanol, & Ethanol
• Compatible with sensor on tophat (Not all vehicles have this sensor)


 *Note when connecting to some performance fuel pumps, additional PTFE lines and fittings may be required.  Contact us if you need assistance purchasing these items.

Main Items Included

• Billet Tophat
• Two Electrical bulkheads with connectors (6 wires ea)
• Two electrical connectors pre-wired to run factory pump and floats
• Two electrical connectors pre-wired for single 2-wire pump (additional wires and terminals sold separately)
• One 3/8" male quick connect output (compatible with factory line)
• One 7.89mm male quick connect for in the tank
• One PTFE line for in tank with 7.89 quick connect (for factory filter)
• Two accessory port block off plates
• One sensor mounting bracket (not needed on all cars)

Optional Accessories

• Proprietary full flow low profile AN8 Bulkhead set
• Loose electrical terminals compatible with our connectors
• Pre-crimped pigtail electrical wires compatible with all fuels
• 90 degree billet quick connects for AN6 Fuel line
• Smooth bore PTFE Fuel line by the inch
• All fuel compatible electrical wire by the inch

Product Weight: 2.0 lbs

Material: Anodized Aluminum

OEM Pump Wiring: Included - Requires posi-taps or T-Taps

Secondary Pump Wiring:  Included for 1 additional pump

Included Pump Output: 9.49mm (3/8") male quick connect (fits oem fuel line)

• Bmw 540i 2017 to 2023
• Bmw 540ix 2017 to 2023
• Bmw 640ix 2018 to 2020
• Bmw 740i 2016 to 2023
• Bmw 740ix 2016 to 2022
• Bmw 840i 2020 to 2023
• Bmw 840ix 2020 to 2023
• Bmw M2 2023
• Bmw M240i 2023
• Bmw M240i Xdrive 2022 to 2023
• Bmw M3 2021 to 2023
• Bmw M340i 2019 to 2023
• Bmw M4 2021 to 2023
• Bmw M440i 2021 to 2023
• Bmw M440ix 2021 to 2023
• Bmw M550ix 2020 to 2023
• Bmw M850ix 2019 to 2023
• Bmw X3 M 2019 to 2023
• Bmw X3 M40ix 2018 to 2023
• Bmw X4 M 2019 to 2023
• Bmw X4 M40ix 2018 to 2023
• Bmw X5 M 2020 to 2023
• Bmw X6 M 2020 to 2023
• Bmw Z4 M40i 2019 to 2023
• Toyota Supra 2019 to 2023

Feel free to contact us at info@mlperformanceeu.com should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

PR-601-0316

Manufactured by

Precision Raceworks
