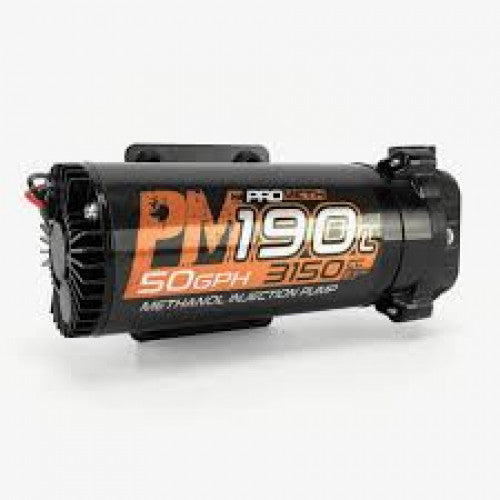

Coolingmist Universal 300psi Pump (50gph)

Flow & Horsepower Ratings @ 13.5 Volts:

• 1.7 gallons per minute open flow
• 190 liters per hour @ 180 PSI
• 50 gallons per hour @ 180 PSI
• 3150 cubic centimeters @ 180 PSI
• Supports up to 2500-4500 horsepower - 100% water mix
• Supports up to 1500-1900 horsepower - 50/50 water methanol mix
• Supports up to 1200-1600 horsepower - 100% methanol mix

Special Notes:

• Do not use with petroleum products (E85, E98, gasoline, diesel, etc)
• Use 12 gauge wire for power and ground
• Does not include pump fittings. Pump fittings are available for sale separately
• Pumps come preset at 220 PSI - Expect 4-5 years of service if pump pressure is left at 220 PSI or below
• Running the pump over 250 PSI is not advised and will shorten pumps life
• All tests were performed using a 6AN stainless steel braided hose on the inlet side of pump
• Using 1/4" outside diameter nylon on the inlet side of the pump will reduce pump performance and flow output

• Pressure adjustable from 100-300 PSI

• 3/8 NPT female inlet & outlet port

• Motor turns 2200 RPM @ 12 volts

• 16.5 amperage draw

• Built-in bypass valve

• Built-in thermal protection

• Built-in anti reverse check valve

• Built-in heat sink on back of motor

• Heavy duty dual EPDM pump seals

• Pressure adjustable from 100-300 PSI

• Can run dry up to 1 hour without damage

• 100% methanol compatible

• Tested prior to shipping

• Made in the USA

• Weight 6.2 lbs

Universal

Coolingmist-300psi

Manufactured by

Coolingmist
