[message]Perfect for sporty driving

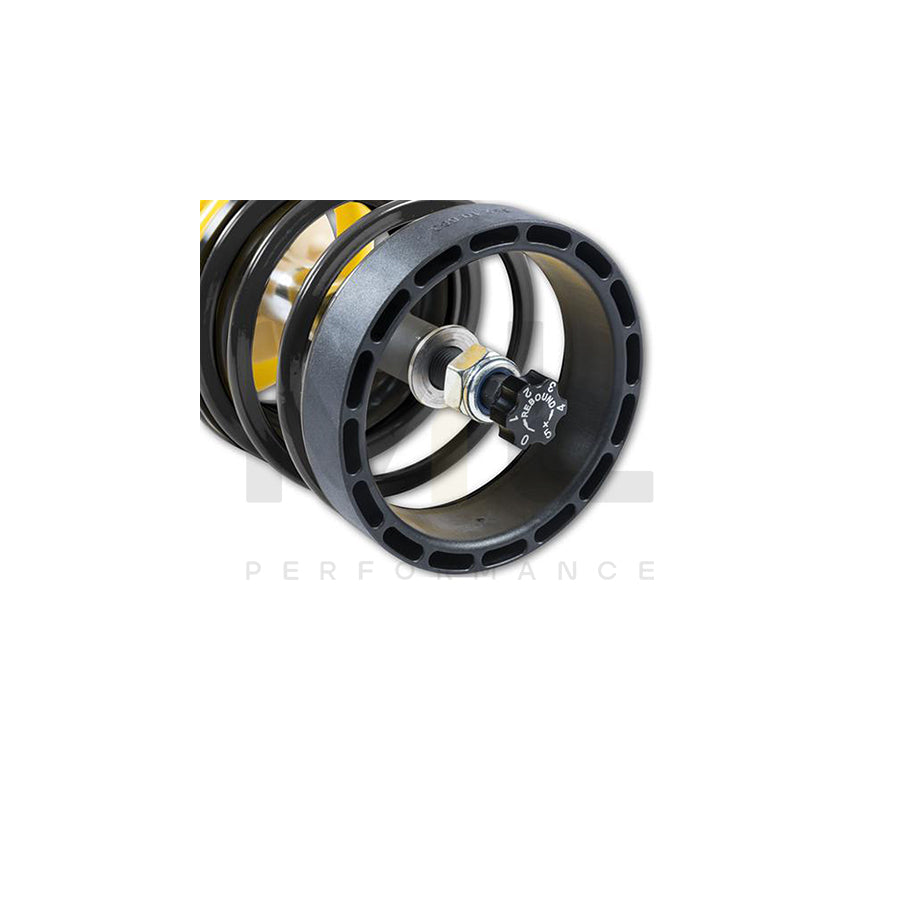

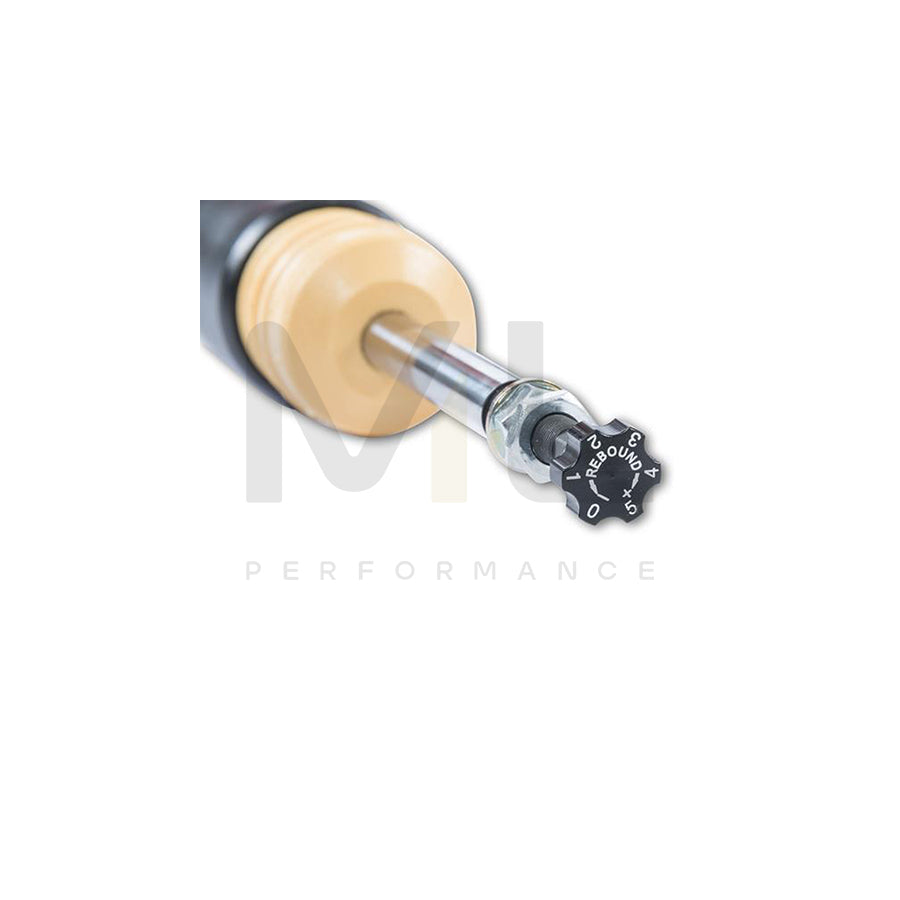

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.
Easy lowering adjustment

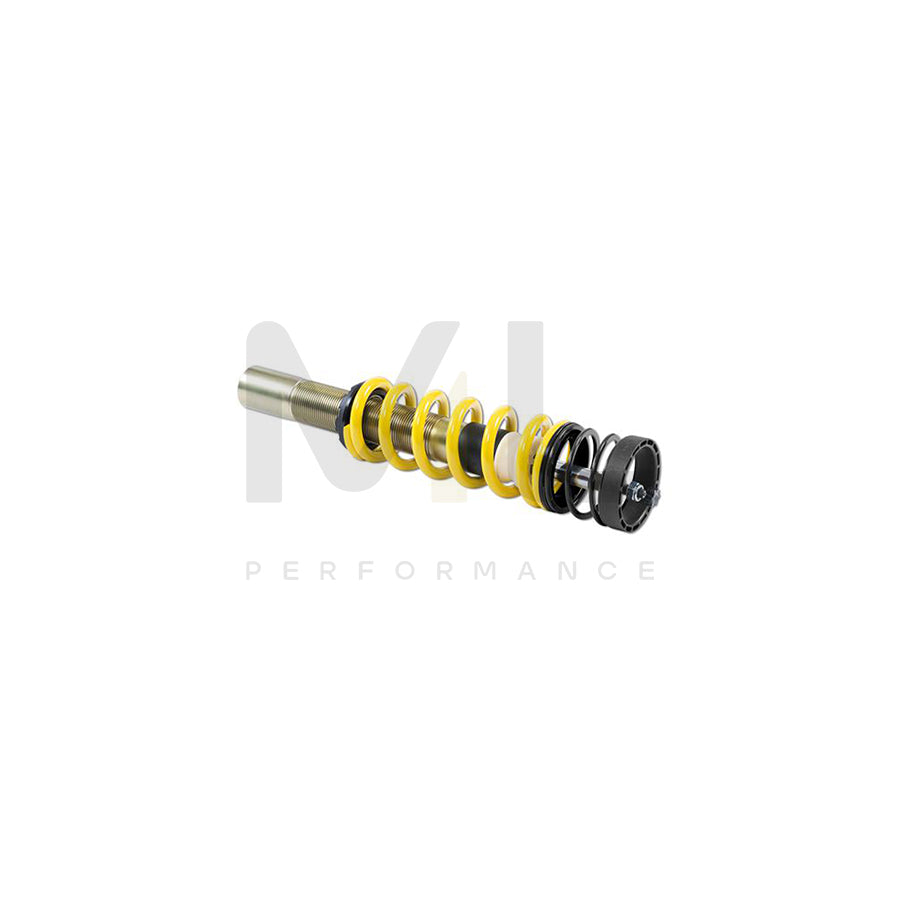

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.
KW Engineering: Exclusive for ST suspension
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weath
- Front Lowering: 35mm to 60mm
- Rear Lowering: 35mm to 60mm
- Version: ST XA
- Damping adjustment: None
- Material: Galvanized Steel
- Diameter fa (mm): 50
- Approval: Part approval (?19.3)
Specifications
Length | 76 |
Width | 46 |
Height | 15 |
- A4
- A4 Avant (8W5, 8WD, B9) (08/2015-)
- 2.0tdi quattro / 2.0tfsi Mild Hybrid quattro / 2.0tfsi quattro / 40tdi Mild Hybrid quattro / 40tdi quattro / 40tfsi Mild Hybrid quattro / 45tfsi Mild Hybrid quattro
- A5
- A5 Sportback (F5A, F5F) (06/2016-)
- 2.0tdi quattro / 2.0tfsi Mild Hybrid quattro / 2.0tfsi quattro / 40tdi Mild Hybrid quattro / 40tdi quattro / 40tfsi Mild Hybrid quattro / 40tfsi quattro / 45tfsi Mild Hybrid quattro
Note:
- only for cars with damper diameter 50mm (not 48,5mm) / clamp diameter 53mm on the front axle
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510476
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
182100AR
Manufactured by
ST Suspension
Warranty
Two years manufacturer warranty
EAN
4250580482956
