The IE Audi B9 A4 & A5 2.0T Cold Air Intake is the perfect addition to any engine bay. Give your Audi added horsepower, torque, snappier throttle response, and an aggressive sound. Typical peak gains from our CAI are roughly 10-20 Horsepower and Torque.

This item is typically purchased together with the Integrated Engineering Audi B9 Carbon Fiber Intake Lid (A4 & A5).

Increased Air Flow

This Intake delivers an impressive flow increase to feed your turbo. More cold air flow means more power; especially during the hot summer months. Ditch your stock restrictive airbox for the IE intake System.

Design Details

IE engineers set out to produce the highest performing cold air intake that looks great and fits like a factory installed part in your A4. The latest in computer design and 3D scanning technology were employed during the development process for a perfect fit and maximum performance. The final product resulted in the greatest performing and best-looking intake available.

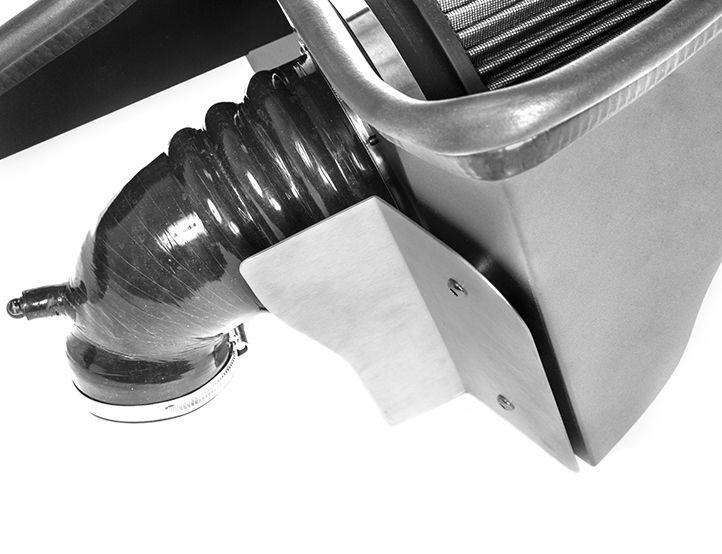

High Flow Velocity Stack

Delivering cold air to your engine is a must for making power. The velocity stack efficiently channels air as quickly as possible into the intake system. The velocity also functions as a solid mount for the air filter which means no intake pipes rattling on heat shields.

Custom Heat Shield

IE uses a three piece heat shield which performs and looks great. It effectively channels cold air from the front of the car to the massive performance filter. Furthermore, it eliminates the induction of hot air found in other locations of the engine bay. A second heat shield is mounted above the turbocharger to further protect against power robbing heat off the exhaust and turbo.

Perfect Fitment

This Intake fits B9 Audi A4 and A5 without any modification or installation hassles. The install process is simple and can be done quickly with basic tools. The fact that IE intake utilizes the factory airbox mounts ensures a perfect and hassle free fit. Additionally, the stock rubber mounts allow for engine movement which keeps intake components from getting damaged.

Classy & Clean Appearance

Wrinkle black powder coated velocity stack and heat shields result in a sleek and sporty appearance in any engine bay. As a final touch, all IE heat shields are finished with a classy, laser etched, stainless steel IE logo badge.

• IE Intake velocity stack & heatshield assembly
• IE Silicone turbo inlet pipe assembly
• IE 5” inlet performance air filter
• IE Turbo heat shield
• All necessary hardware (clamps, nuts, bolts, etc)

• Audi - A4 2015+ (B9) 2.0T
• Audi - A5 2015+ (B9) 2.0T
• Audi - A4 Allroad 2015+ (B9) 2.0T

*Can also be retro-fitted onto an Audi A6 C7. However, this will not be covered under warranty.

Power Gains

The ram air design, velocity stack, and massive 55-inch filter inlet help deliver the most HP possible from a cold intake system.

Expect peak gains of 10-20+HP/TQ on tuned engines.

Dyno Power Results

The following power result data was collected on our in-house Dynapack hub dyno. Dyno chart is as tested at 4500 feet altitude with SAE corrected numbers. Before and after results are direct back-to-back comparisons on a full bolt-on stage 2 B9 A4 2.0T engine. The only change made to the vehicle between testing is the swap from a stock intake with a new clean air filter to the IE Cold Air Intake Kit. Dyno power results are approximate and may vary from car to car.

Installation is quick and easy to install with basic tools. The process should take under an hour for most enthusiasts.

IEINCK1

Manufactured by

Integrated Engineering (IE)
